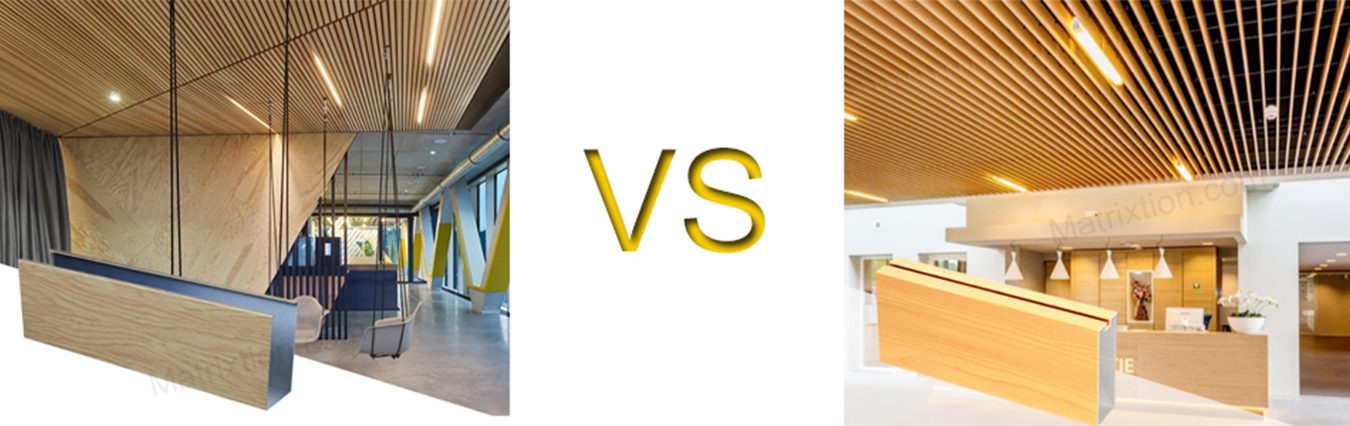

What’s The Difference Between U-Baffle Ceiling And Extruded Baffle Ceiling?
Baffle Ceiling offers a special pattern with a linear look ceiling. It is airy and ventilating, its lines are neat and tidy, and its layers are clear, which makes decoration a simple, clear, and beautiful style. It is widely in offices, lobbies, schools, libraries, indoor sporting arena, restaurants, shopping malls and retail areas, transportation centers, including the train station and airport terminals.
A variety of baffle designs are available, and the openness of the ceiling depends on the choice of baffle size. Besides, Different Baffle arrangements have a more significant impact on acoustics.
According to the different production processes, the baffle ceiling can be divided into U-shape baffle and Extruded aluminum baffle.
Today we’re here to analyze the difference between the two kinds of baffle ceilings.

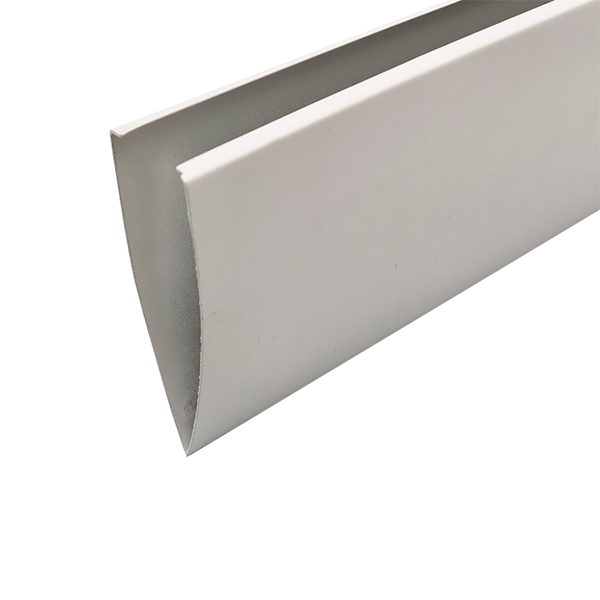

U Baffle Benefits
It’s Roll Forming produce technology. check the video
Overcome insufficient budget issues
More are applicate interior
A wide range of design options
Can be customized to your needs
Available in numerous RAL colors and wood grain colors· Choose from a range of widths and heights which can be installed at a varied spacing
Open space for integrated ceiling solution
Easy installation with standard carriers
Can be easier to install and offer easy access to maintenance and the installation of additional services such as lighting, sprinklers, and climate control systems
No need to open the mold, the production time is relatively short
Extruded Baffle Benefits
The extruded aluminum baffle uses a 6063 aluminum alloy through extrusion to form
Its hardness and straightness are all much higher than the U baffle
Its suspension grid connects the baffles with screws
The shapes of the extruded aluminum baffle can be rectangular, square, round, and custom
The extruded baffle is now the most popular baffle ceiling series among our customers
Applicate exterior & interior
Long lifespan
At Matrixtion, we have ready-made molds and classic cases as well as colors for you to choose from for free. Engineers will work out a variety of solutions according to your requirements.
| Product name | Baffle Ceiling |
| Raw materials | Aluminum, Steel, Stainless steel, Metal |
| Product Type | U-Baffle，O-Baffle，V-Baffle ，Extruded profile Baffle |
| Height Size（mm） | 20~300 |
| Width Size (mm) | 20~300 |
| Lenght Size (mm) | 100~6000 |
| Thickness(mm) | 1.0 —— 8.0mm |
| Distance（C to C)mm | 50 100 150 200 300 400 600 |
| perforation(mm) | Nonporous ，Ø0.7mm ，Ø1.5mm ，Ø1.8mm， Ø2.0mm， Ø2.5mm， Ø3.0mm |
| Acoustic Felt | Local， Soundtex， Royalin， Lantor acoustic， Non-flammable felt options |
| Surface treatment | Powder coating, Pvdf, Woodgrain, Marble grain, UV printing |
| Delivery time | 15 – 25days |
Both kinds of baffle ceilings are very good decorative materials in the market. Choosing the right baffle according to your project.

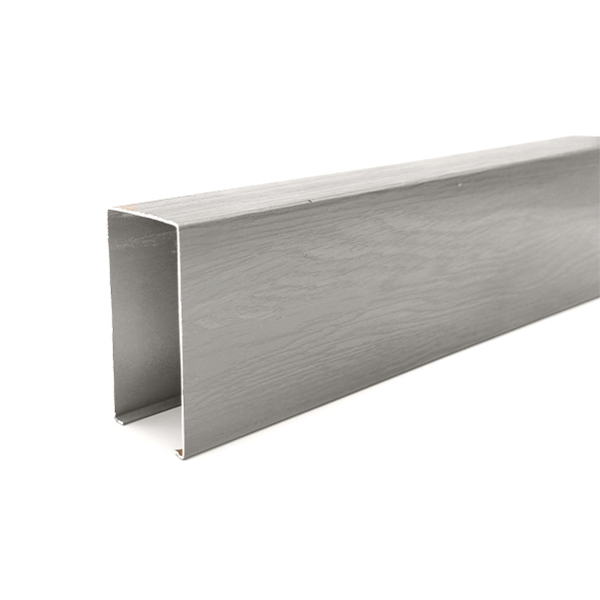

U Baffle
O Baffle
V Baffle
Matrixtion provides unrivaled expertise and experience in architectural metals and engineering,
We help owners, architects and contractors create iconic spaces and places that inspire and help them to achieve their most profound design aspirations.
